Product description

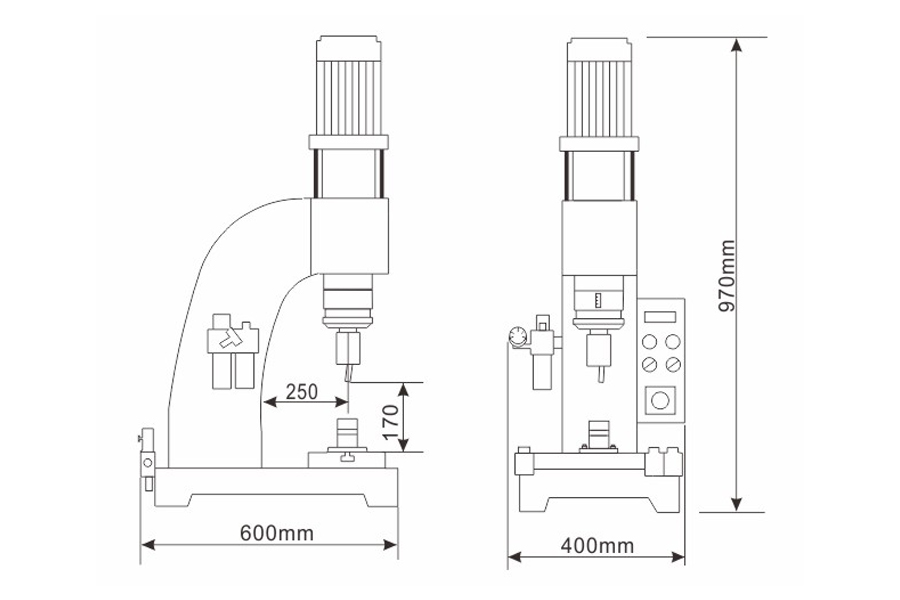

Pneumatic riveting machine
DF-A-6 Spec.Φ1-Φ4
It is of easy operation and applicable for the operation in automatic production line.
It is most applicable for riveting small spares of the electric equipment.
It is economical and also saves a lot of energy with small investment.
| Model | Spindle travel(mm) | Dia of rivet (mm) |
Distance between punch and table(mm) |
Throat depth(mm) | Motor (kw) | Gauge pressure (kgf/cm2) | Max.output (kgf) | Table size (mm) | NW (kg) | Dimension(mm) |
| DF-A-6 | 0-40 |
solid1-4 hollow2-6 |
140 | 70 | 0.09 | 2-7 | 370 | 175*240 | 50 | 330*270*700 |
