Product description
Pneumatic riveting machine(standard type)
DF-A Spec.Φ2-Φ8
Simple and durable design,low breakdown and rarely maintenance.
Strong riveting ability, the most suitable for assembly line work.
Single phase or three phase voltage for your choice.
Max. Riveting capacity up to Φ8mm rivets and underΦ6 mm rivets will be recommended to use for most efficiency.
| Model |
Spindle travel (mm) |
Diaof rivet(mm) |
Distance between punch and table (mm) |
Throatdepth (mm) |
Motor(kw) |
Gauge pressure (kgf/cm2) |
Max.output (kgf) |
Table size (mm) |
NW (kg) |

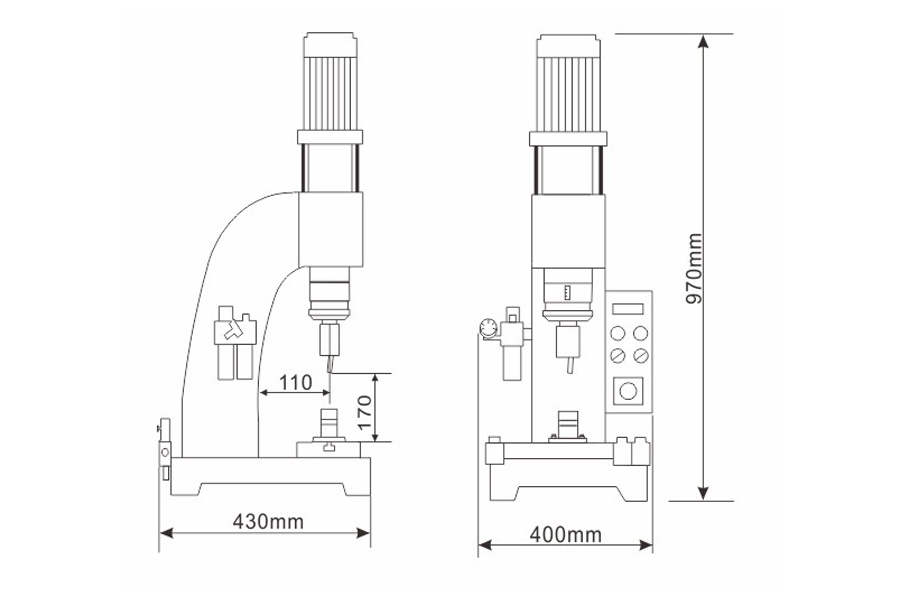

Dimension (mm) |
| DF-A | 0-40 |
solid2-8 hollow1-14 |
170 | 110 | 0.37 | 2-8 | 720 | 130*230 | 115 | 430*400*970 |
