Product description
Pneumatic riveting machine(wide type)
DF-A-1 Spec.Φ2-Φ8
Using cast steel body, strong structure, no vibration, no noise, good security.
Customer can specify the special voltage.
It can process the parts with large width.
It can configure imported motor and other spare parts etc.
| Model |
Spindle travel (mm) |
Dia of rivet (mm) |
Distance between punch and table(mm) |
Throat depth (mm) |
Motor (kw) |
Gauge pressure (kgf/cm2) |
Max.output (kgf) |
Table size (mm) |
NW (kg) |

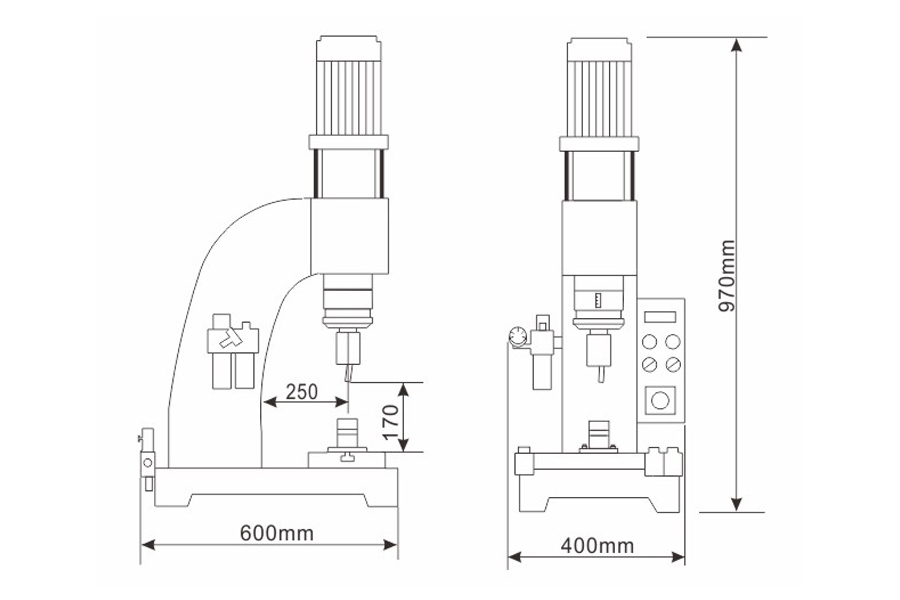

Dimension (mm) |
| DF-A-1 | 0-40 |
solid2-8 hollow1-14 |
170 | 250 | 0.37 | 2-8 | 720 | 130*230 | 150 | 600*400*970 |
