Product description

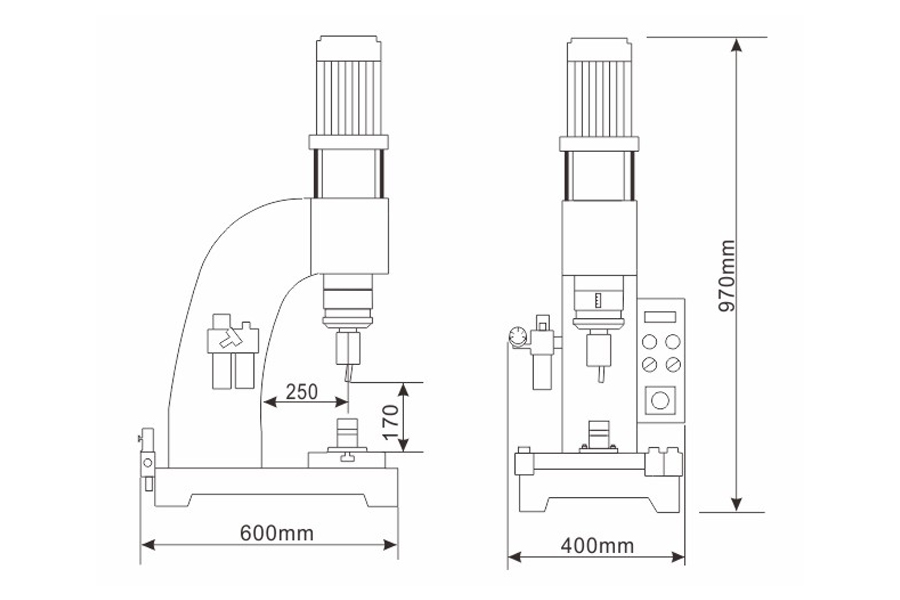

Pneumatic riveting machine
DF-A-8 Spec.Φ2-Φ12
It is a pneumatic riveting machine which can rivet Φ12mm.
Quick riveting speed,stable quality,superior surface finish.
Reasonable machine body design and most favorable price in china.
| Model | Spindle travel(mm) | Dia of rivet(mm) |
Distance between punch and table(mm) |
Throat depth(mm) | Motor(kw) | Gauge pressure (kgf/cm2) | Max.output (kgf) | Table size (mm) | NW (kg) | Dimension(mm) |
| DF-A-8 | 0-35 |
solid 2-12 hollow1-14 |
180 | 200 | 0.75 | 2-8 | 1400 | 315*485 | 230 | 650*485*1250 |
.jpg)
