Product description
Pneumatic riveting machine
DF-A-3 Spec.Φ2-Φ8

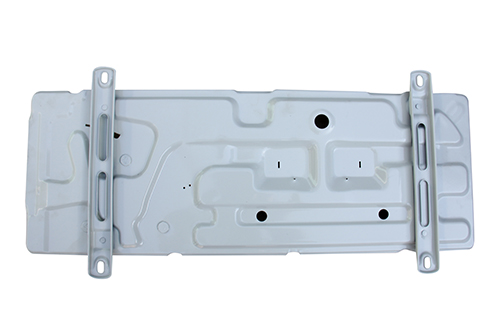

The riveting machine is exclusively used in outdoor chassis of air-condition and adopt double location riveting process.
Compare riveting process with welding process,the advantage of riveting process is less power consumption, higher strength and efficiency.
Easy operation,it can implement riveting action by double-person of which greatly increases the working efficiency.

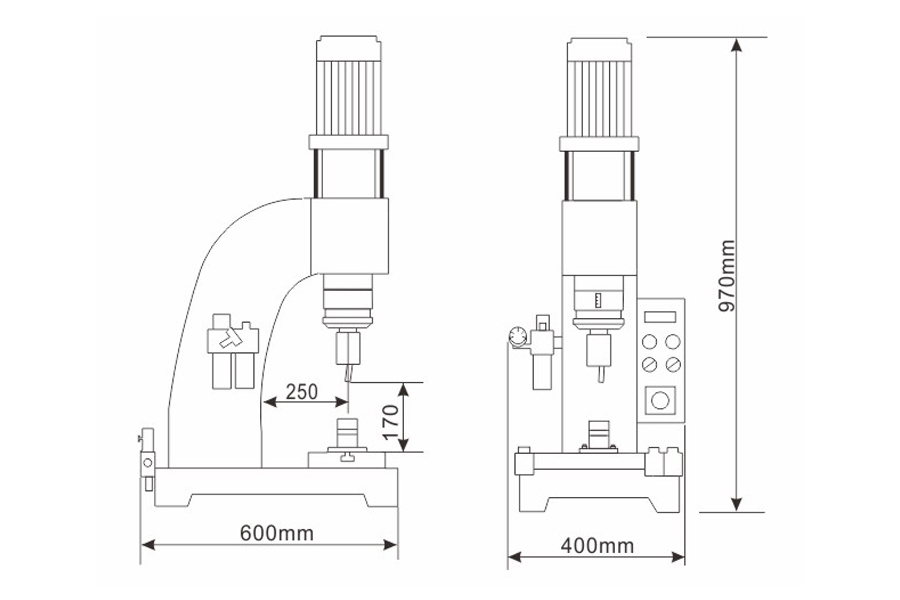

| Model |
Spindle travel (mm) |
Dia of rivet (mm) |
Distance between punch and table (mm) |
Throat depth (mm) |
Motor (kw) |
Gauge pressure (kgf/cm2) |
Max.output (kgf) |
NW (kg) |
Dimension (mm) |
| DF-A-3 | 0-40 |
solid2-8 hollow1-14 |
170 | MAX230 MIN100 | 1.48 | 2-8 | 720 | 1200 | 1740*510*1600 |
