Product description
Hydraulic riveting machine
DF-B-9 Spec.Φ2-Φ28
Big hydraulic pressure and fast riveting speed, biggest models in the industry of riveting machines.
Reasonable Hydraulic design with a cooling system,oil temperature will not raise high after long time running.
Worktable can lift up and down to rivet the spare parts with different heights.

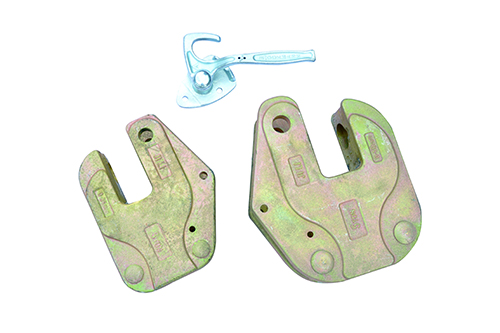

It is suitable for riveting parts in flanging or roller shape.
| Model |
Spindle travel (mm) |
Dia of rivet (mm) |
Distance between punch and table(mm) |
Throat depth(mm) |
Motor (kw) |
Gauge pressure (kgf/cm2) |
Max.output (kgf) |
Table size (mm) |
NW (kg) |
Dimension (mm) |
| DF-B-9 | 0-45 |
solid2-28 hollow1-45 |
325 | 200 | 5.9 | 0-140 | 7000 | 300*400 | 1700 | 1500*1000*2300 |
