Product description
Hydraulic riveting machine
DF-B-5 Spec.Φ2-Φ8
The desktop model can be operated in the production line.
Stable pressure,convenient operation,quick up/down adjusting speed.
Small oil tank volume,uneasy rise of oil temperature,the pressure is stable and would not be declined easily.
| Model |
Spindle travel (mm) |
Dia of rivet (mm) |
Distance between punchand table(mm) |
Throat depth (mm) |
Motor(kw) |
Gauge pressure (kgf/cm2) |
Max.output (kgf) |
Table size (mm) |
NW (kg) |
Dimension (mm) |
| DF-B-5 | 0-30 |
solid2-8 hollow1-16 |
170 | 170 | 1.1 | 0-25 | 1200 | 270*180 | 140 | 820*260*980 |

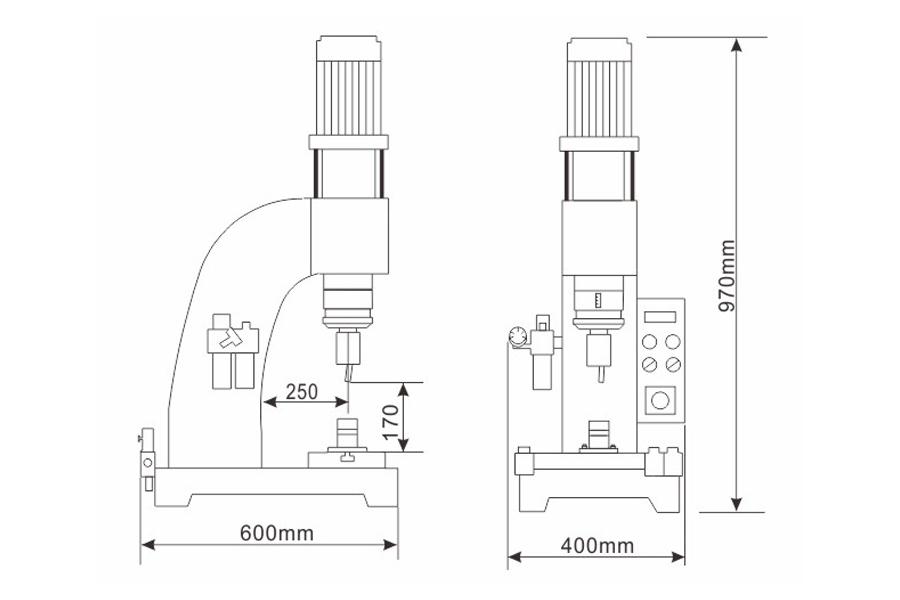

.jpg)
